Ore Mining Coal Mining Drill Bits With Two-Wing And Tunsten Carbide Pdc

Name: Ore Mining Coal Mining Drill Bits With TwoWing And Tunsten Carbide Pdc
Brand: MIROC by KSQ
Price: 1 USD

Ore Mining Coal Mining Drill Bits With Two-Wing And Tunsten Carbide Pdc Manufactures

Brand Name : MIROC by KSQ

Model Number : Coal Mining Drill Bits

Certification : ISO9001

Place of Origin : China (Mainland)

MOQ : 50 pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs per year

Delivery Time : 5-15 Work Days

Packaging Details : Plywooden Box

Model Type : Coal Mining Drill Bits

Materal : Carbon Steel

Processing Type : Forging

Diameter : 26-42mm

Use : Coal Mining

Application : Coal Mining, Ore mining

Machine Type : Drilling Equipment

Color : Black

Contact Now

Coal Mining Drill Bit With Two-wing And Tunsten Carbide PDC For Coal Mining Anchor Shank

1. Product Description:

Material: high virgin raw material with submicron and average grain size.
Tolerance: strict tolerance extent control, which can reach +/-0.01mm;
Grades: various for choice: YG8C,YG10C,YG11C and so on.
Types: standard, conical, parabolic,ballistic
Physical performance: high hardness and impact toughness, very good mechanical & chemical stability

2. Grade, Properties and Recommended Applications of Mining

Grade	Physical Properties (Typical)			Recommended Applications
	Density	Hardness	Transverse Rupture Strength
	g/cm3	HRA	N/mm2
YG4C	15.0-15.2	90.3	2000	Suitable for making geological prospecting drill bits, coal cutting bits, electric and pneumatic drill bits, also suitable for making the drill bits to drill the medium hard rocks, calcareous rocks and alternate hard and soft rocks.
YG6	14.95	90.1	1800	Suitable for hard rock formation under strong shock.
YG8C	14.6-14.8	88.5	2700	Suitable for making impact rotating drill bits to drill the medium hard and hard rocks, also suitable for making coal cutting bits and oil drill bits.
YG9C	14.5-14.7	88.1	2800	Suitable for making impact roating drill bits and button bits as well as sink hole drill button bits to drill the soft to medium hard rocks.
YG10C	14.4-14.6	87.7	2800	Suitable for making impact roating drill bits and button bits as well as sink hole drill button bits to drill the medium hard to hard rocks.
YG11C	14.2-14.4	87.0	2900	Suitable for making tricon and impact drill column bits to drill the hard to extra hard rocks.
YG13C	14.1-14.3	86.7	2800	Suitable for making oil tricon bits to drill the medium hard to hard rocks.
YG15C	13.9-14.1	85.7	2800	Suitable for making oil tricon bits to drill all kinds of the medium hard to hard rocks.
YG16C	13.8-14.0	85.7	2600	Suitable for making the diamond composite plate applied to oil tricon drill tools to drill all kinds of the medium hard to hard rocks.
ZD10U	14.9-15.0	90.2	2800	Suitable for making button bits of the small to medium impact drills to drill the soft, medium hard and hard rocks.
ZD15	14.7-14.9	89.2	2700	Suitable for making impact drill and sink hole drill button bits to drill all kinds of the medium hard to hard rocks.
ZD30	14.4-14.6	87.6	2600	Suitable to be used as drilling bits and buttons for impacting drilling tools or buttons for cog drilling tools in mining industry to drill medium-hard to hard rocks.
ZD30.2	14.4-14.6	87.4	2500	Suitable to be used as drilling bits, buttons for impacting rotary drilling tools in mining industry to drill medium-hard rocks.

3. Application:

Tungsten carbide drill bit mainly are:Water exploration drill bit,coal mining drill bit,soft rock drill bit,composed drill bit and reaming drill bit.

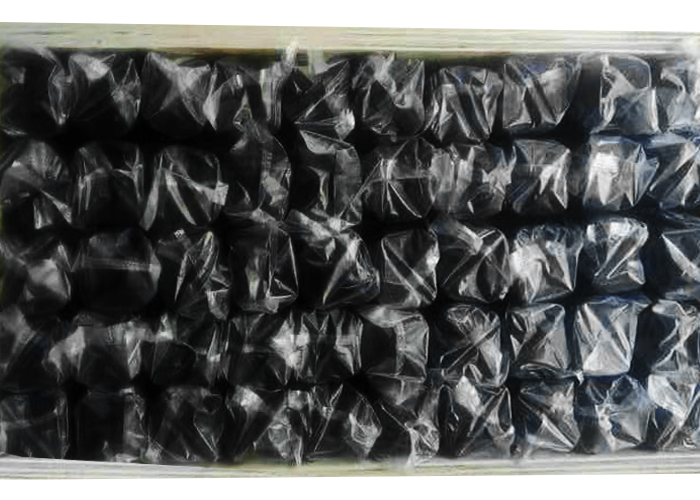

4. Packaging:

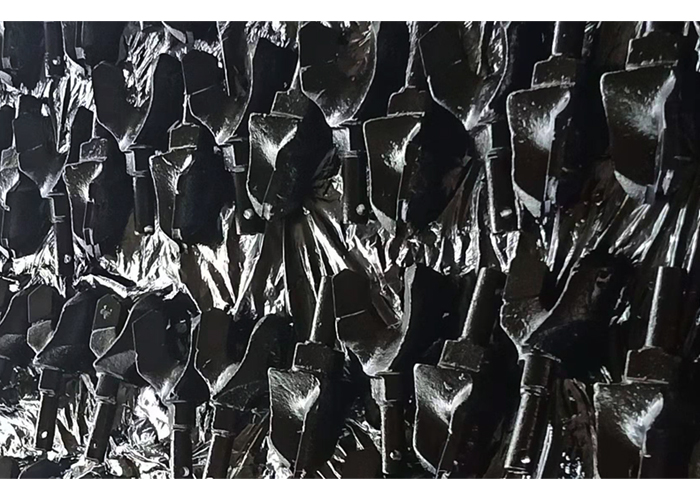

Ore Mining Coal Mining Drill Bits With Two-Wing And Tunsten Carbide Pdc

6. Company Information:

The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.

MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.

MIROC® Rock Drilling Tools include:
Top Hammer Drilling Tools
Down-the-hole (DTH) Drilling Tools
PDC Bits
Tricone Bits

Ore Mining Coal Mining Drill Bits With Two-Wing And Tunsten Carbide Pdc

7. Why Choose Us?

Experience:More than 10 years experience in making tungsten carbide products, manufactured 3,000 tons products. Now we can manufacture 500 tons per year. 5 years exporting experience, professional at exporting, any kinds of payments accepted.
Quality: Achieved ISO 9001:2000 certificate, reached stardard quality control remand.
Service:Free online technical service, OEM & ODM service
Price:Competitive and reasonable
Market: Popular in South Asia, America, Mid-east, Europe, and Africa.
Payment: All payment terms supported
