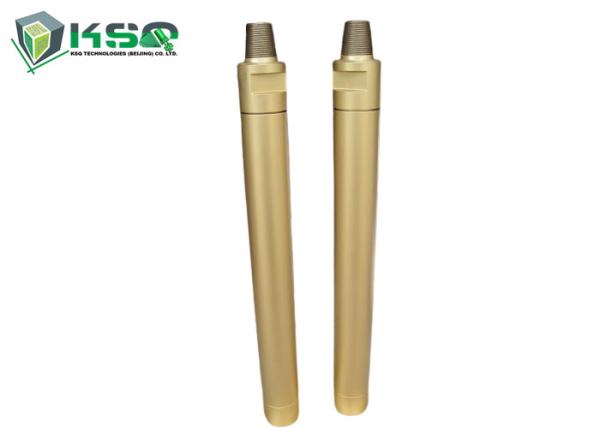

CIR90 Low Air Pressure DTH Hammer Rock Drill For Mining

Name: CIR90 Low Air Pressure DTH Hammer Rock Drill For Mining
Brand: MIROC
Price: 1 USD

CIR90 Low Air Pressure DTH Hammer Rock Drill For Mining Manufactures

Brand Name : MIROC

Model Number : DTH Hammer

Certification : API

Place of Origin : China

MOQ : 1

product name : DTH Hammer

Type : Hammer Plate, With Foot Valve, No Foot Valve

Material : Carbon Steel

Processing Type : forging

Use : Mining, quarrying, tunneling, Tunneling, Mining,Quarrying,Water Well

Size : 3'', 4'', 5'', 6'', 8'', 10'', 12 inch

Hammer Series : CIR, BR, COP,DHD,MISSION,QL,SD,NUMA

Color : Green, Golden, etc.

Contact Now

CIR90 Low Air Pressure DTH Hammer Rock Drill for Mining

Specification:

standard type, no foot valve
length: 800mm
external diameter: 80mm,
drilling hole range: 85mm-110mm,
working pressure: 0.5-0.7MPa,
air consumption: 0.7MPa 8m³/min
weight: around 20kg

Drilling Diameter(mm)	Hammer Length(mm)	External Diameter(mm)	Weight(kg)
φ85-φ110	800(without bit)	80	20(without bit)
Working Pressure(Mpa)	Air Consumption(m³/min): 0.7Mpa: 8m³/min
0.5-0.7	Bit Shank		CIR 90

CIR90 DTH Hammer with high air pressure 0.6-1.5MPa

length: 770mm
external diameter: 80mm, drilling hole range: 88-110mm
working pressure: 0.6-1.5Mpa
air consumption: 0.8Mpa 4m3/min
bit shank: Cir90
weight: around 20kg

Drilling Diameter(mm)	Hammer Length(mm)	External Diameter(mm)	Weight(kg)
φ88-φ110	770(without bit)	80	20(without bit)
Working Pressure(Mpa)	Air Consumption(m³/min): 0.8Mpa: 4m³/min
0.6-1.5	Bit Shank		CIR 90

Advantages:

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.

2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.

3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.

4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.

5. Interchangeable with DTH bit and drill pipe

CIR90 Low Air Pressure DTH Hammer Rock Drill For Mining

Product Tags:

CIR90 DTH Hammer

Mining Rock Drill DTH Hammer

0.7MPa DTH Hammer

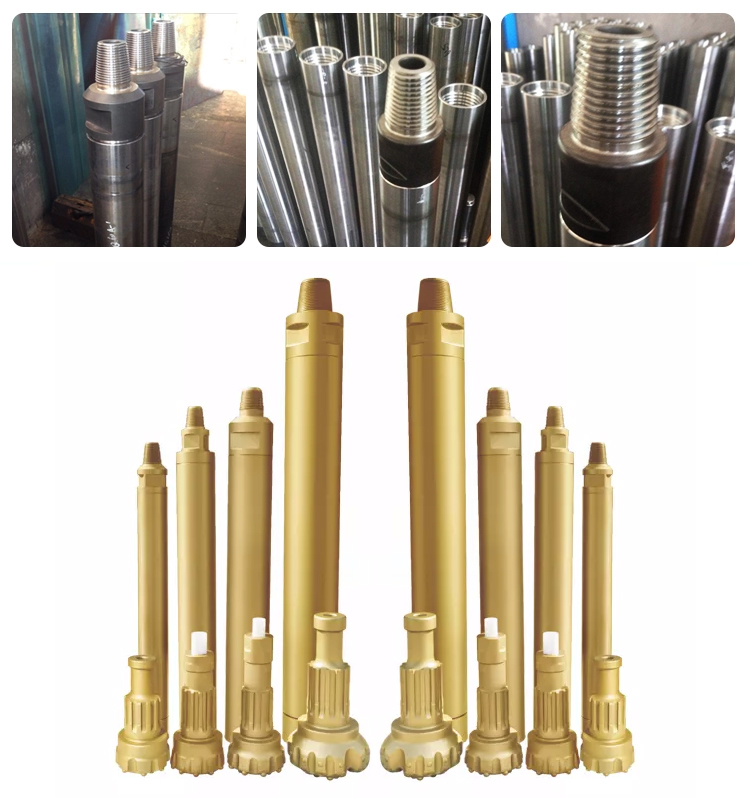

CIR90 Low Air Pressure DTH Hammer Rock Drill For Mining Images
